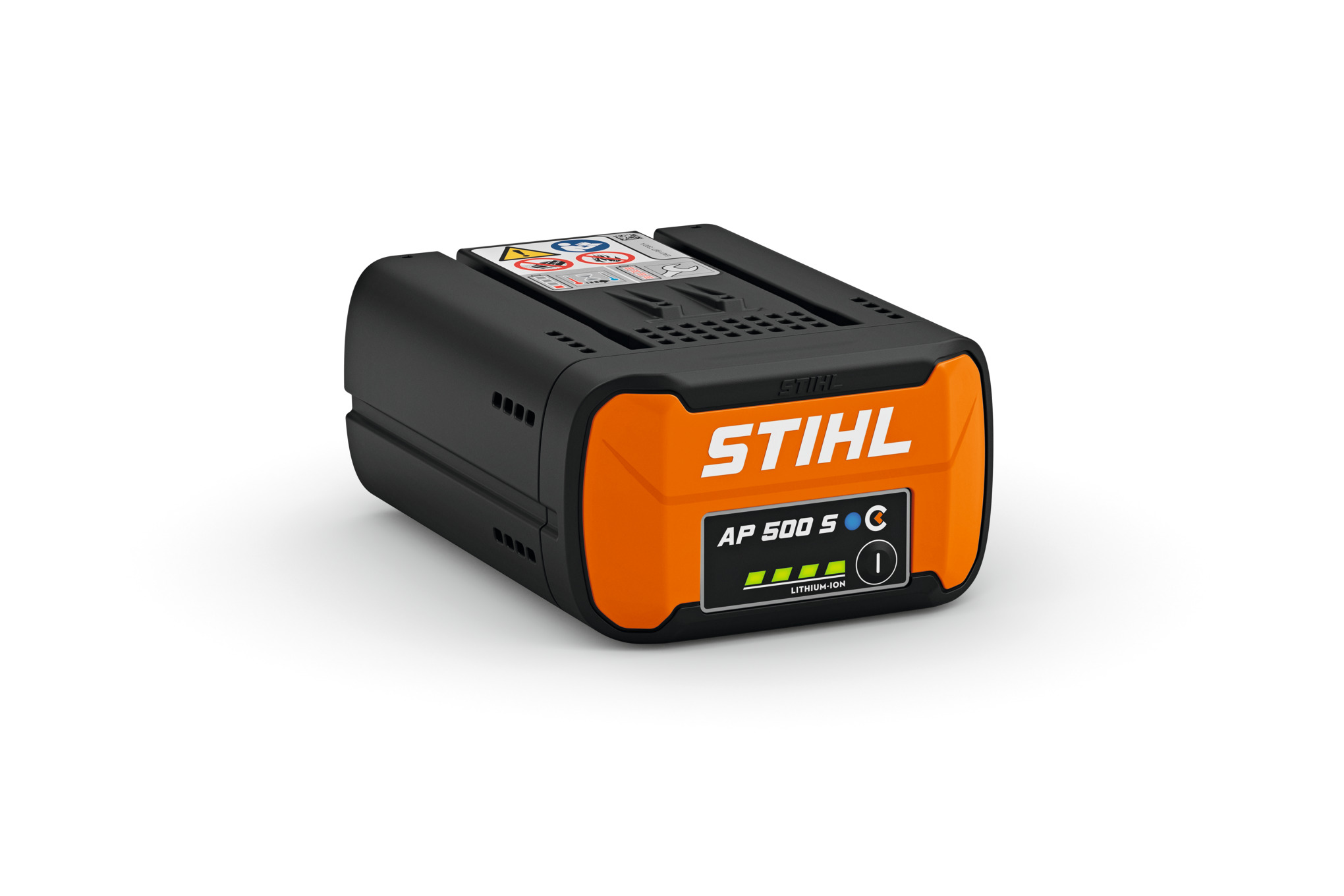

AP 500 S

AP 500 S
AP 500 S
AP 500 S
AP 500 S
$499.99*
Sales Tax Not Included
Select item

  • Available to buy from STIHL Approved Dealers

    Online not available

    Click on the button above to find your nearest one
  • Product Details
    • Compatible with all battery power tools in the STIHL AP System
    • Powerful and durable lithium-ion battery

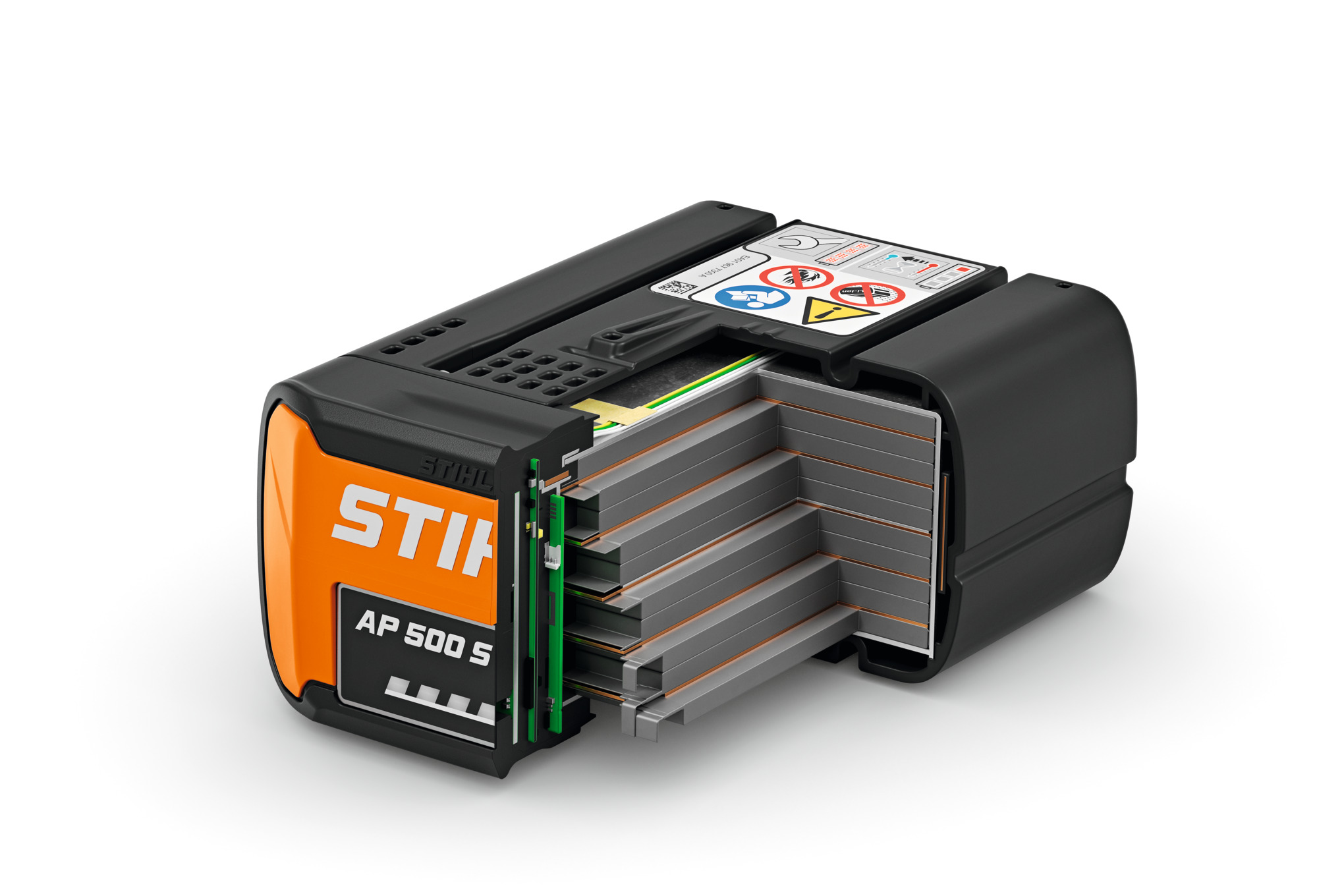

    • Increased number of changing cycles thanks to power laminate technology
    • 4 practical LEDs for indicating charging status and power content
  • Owner manuals

    Find here the owner manual

Technical details

Rated voltage36 V
Max. voltage40 V
Battery weight2 kg
Rated capacity as per IEC 619608.80 Ah
Rated cell capacity (as per manufacturer data)9.36 Ah

Features

MAXIMUM PERFORMANCE INCREASE. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.
POWER BOOST
CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.
CONSTANT POWER
VERY LONG BATTERY LIFE. STIHL batteries are extremely durable and resistant. They are designed for particularly high demands, as can typically occur in very intensive applications with high power requirements. The is based not only the exceptionally robust design, but also the special, particularly long-lasting battery cell technology. Thanks to their intelligent electronics, these STIHL batteries can also be charged more often and faster than average.
LONG LIFE

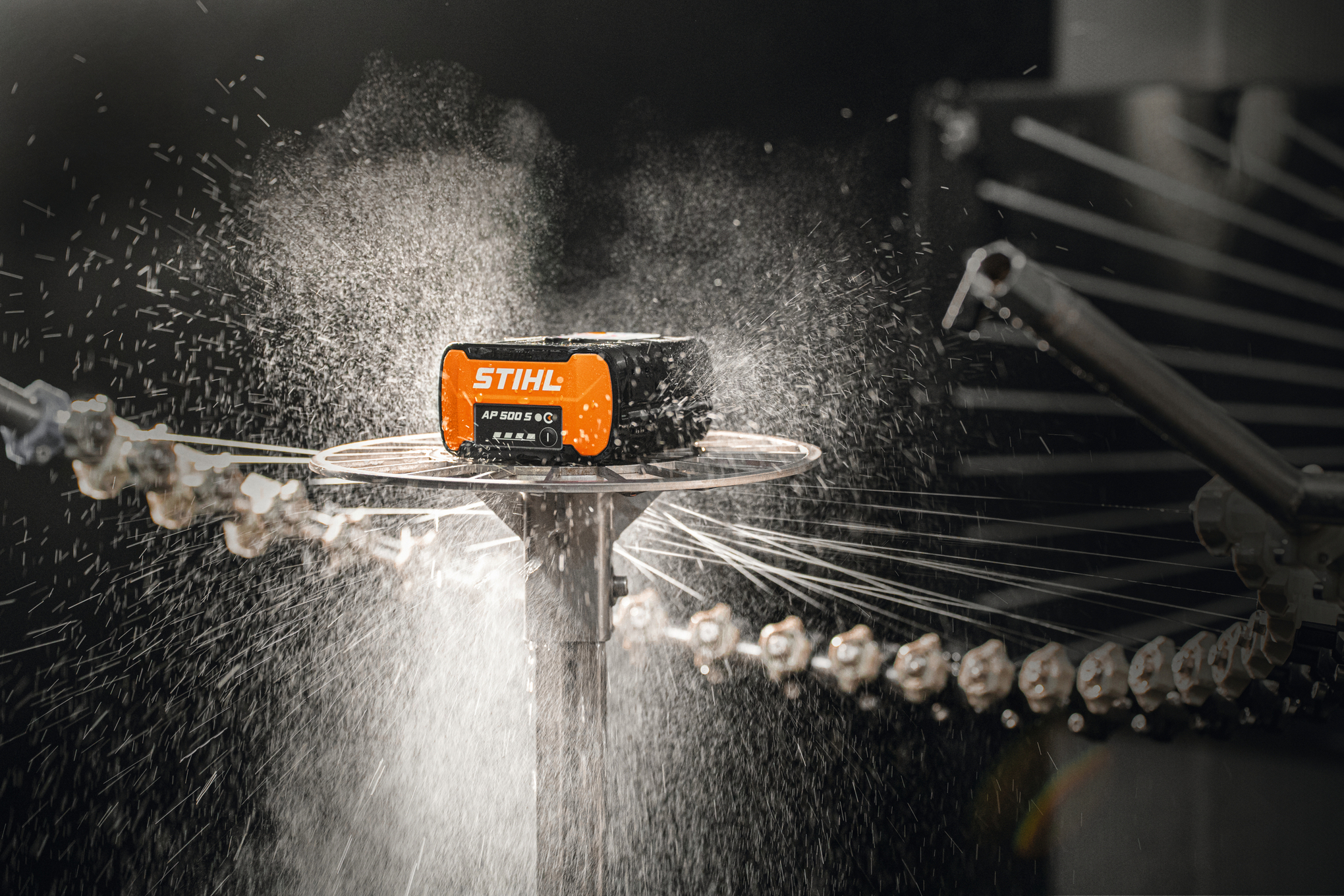

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splash water from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.
IPX4 CERTIFIED

AP 500 S Battery: STIHL’s Most Powerful Battery for AP System Tools

As the most powerful battery in the AP System, the AP 500 S enables professionals to take on larger, more demanding jobs with greater performance than any other AP System battery. Featuring STIHL’s exclusive power laminate cell technology, the AP 500 S delivers an impressive service life of up to 2,500 charge cycles.

Designed with an enhanced power‑to‑weight ratio, the AP 500 S provides 40% more power output and 20% greater capacity compared to the AP 300 S. It is compatible with most tools in the AP System, allowing for seamless transitions between tasks. This premium professional‑grade battery also incorporates an advanced battery management system, enabling the motor’s electronic control unit to compensate for voltage reduction by increasing amperage—ensuring consistent power throughout the entire runtime.

Built for durability, the AP 500 S features an IPX4‑rated, weather‑resistant design and has been engineered and tested to provide reliable protection against splashing water.
