battery life and charging times

Learn about the battery life per battery charge for different STIHL battery power tools as well as the charging times for different STIHL batteries.

11.12.2025

Overview battery systems

Battery life per battery charge

STIHL AS/AI/AK

The battery life of a STIHL battery power tool depends on the battery used, among other things. For example, a STIHL MSA 60 battery chainsaw with the recommended AK 20 battery lasts for up to 40 minutes, and can even achieve a battery life of up to 55 minutes when equipped with an AK 30 battery. You can find a complete list detailing the battery life for each of our STIHL battery power tools in the tables below. All STIHL battery power tools in the AS-System, AI-Line and AK-System are ideal for use in your own yard or in yard centres and nurseries.

STIHL AP-System

The particularly powerful STIHL battery power tools in the AP-System impress with even more endurance and power. The battery life of these cordless power tools is particularly suitable for professional use in landscaping, garden care and tree maintenance or for municipal work. The corresponding tables show the battery life of your STIHL AP-System power tool depending on the battery used.

Hedge trimmers/long-reach hedge trimmers

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

40	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL HSA 26	110 min³	-	-	-	-
STIHL HSA 30	50 min³	-	-	-	-
STIHL HSA 40	40 min⁴	-	-	-	-
STIHL HSA 45	-	40 min³	-	-	-
STIHL HSA 50	-	-	50 min³	100 min	130 min
STIHL HSA 56	-	-	50 min³	100 min	120 min
STIHL HSA 60	-	-	70 min³	140 min	175 min

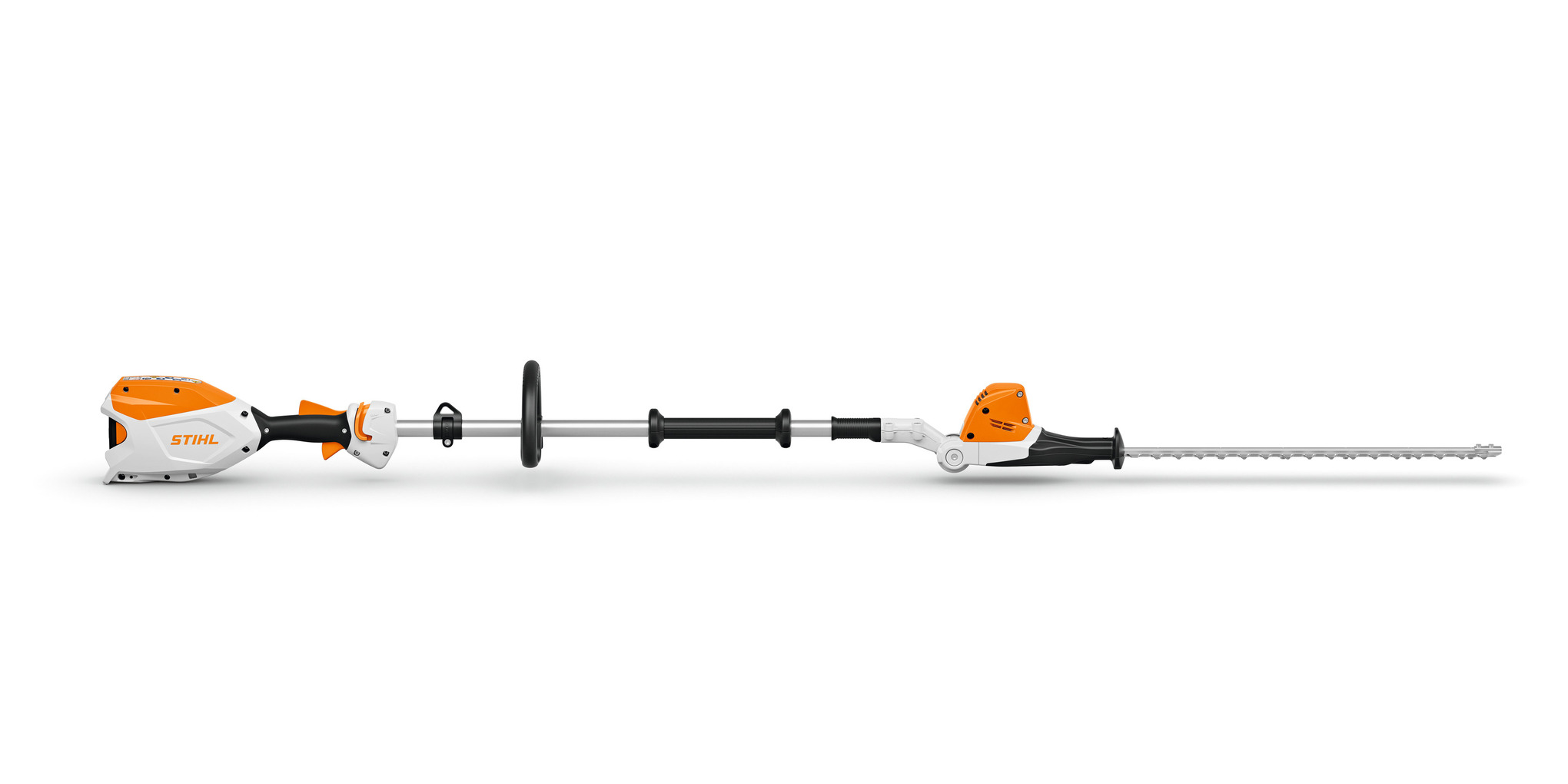

STIHL HLA 56	-	-	50 min	100 min³	120 min

STIHL AP-System

Battery life per battery charge¹ ⁵

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)	AR 2000 L (1.015 Wh battery power²)	AR 3000 L (1.520 Wh battery power²)
STIHL HSA 94 T	54 min	108 min	135 min	167 min	200 min	690 min	985
STIHL HSA 100	75 min	150 min³	180 min	225 min	270 min	1,205 min	1,810 min
STIHL HSA 140 T	80 - 50 min⁴	140 - 90 min⁴	190 - 120 min⁴	235 - 150 min⁴	280 - 180 min⁴	900 - 580 min⁴	1,335 - 870 min⁴
STIHL HLA 66	72 min	144 min	180 min	223 min	268 min	760 min	1,110 min
STIHL HLA 86	72 min	144 min	180 min	223 min	268 min	760 min	1,110 min
STIHL HLA 135	32 min	64 min	77 min	95 min	114 min	370 min	555 min

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³Recommended cutting attachment

⁴Level 1 to Level 3

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Garden pruners/pruning shears

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)

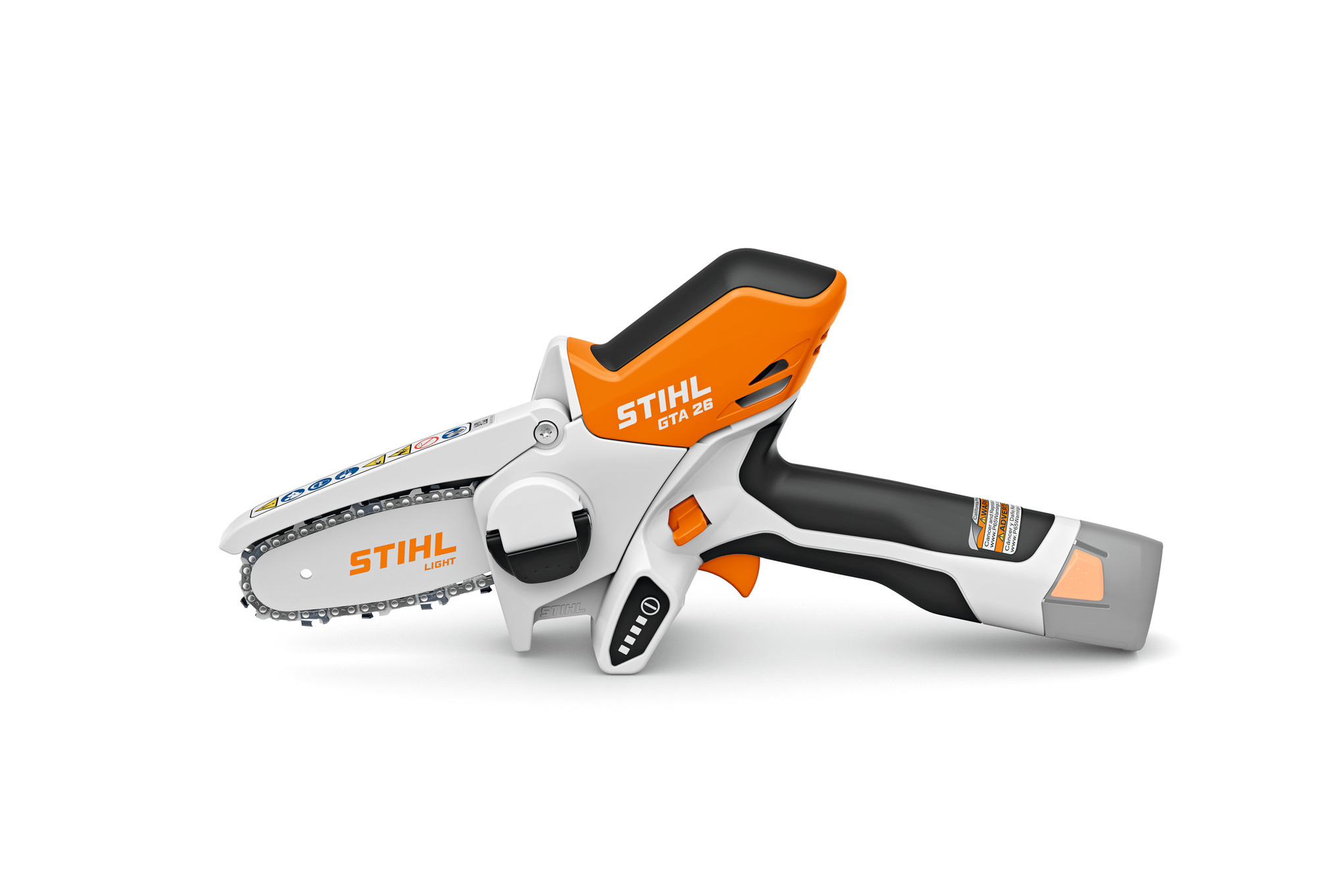

STIHL GTA 26 (When sawing branches (4 cm Ø) up to ...)	25 min	-	-	-	-

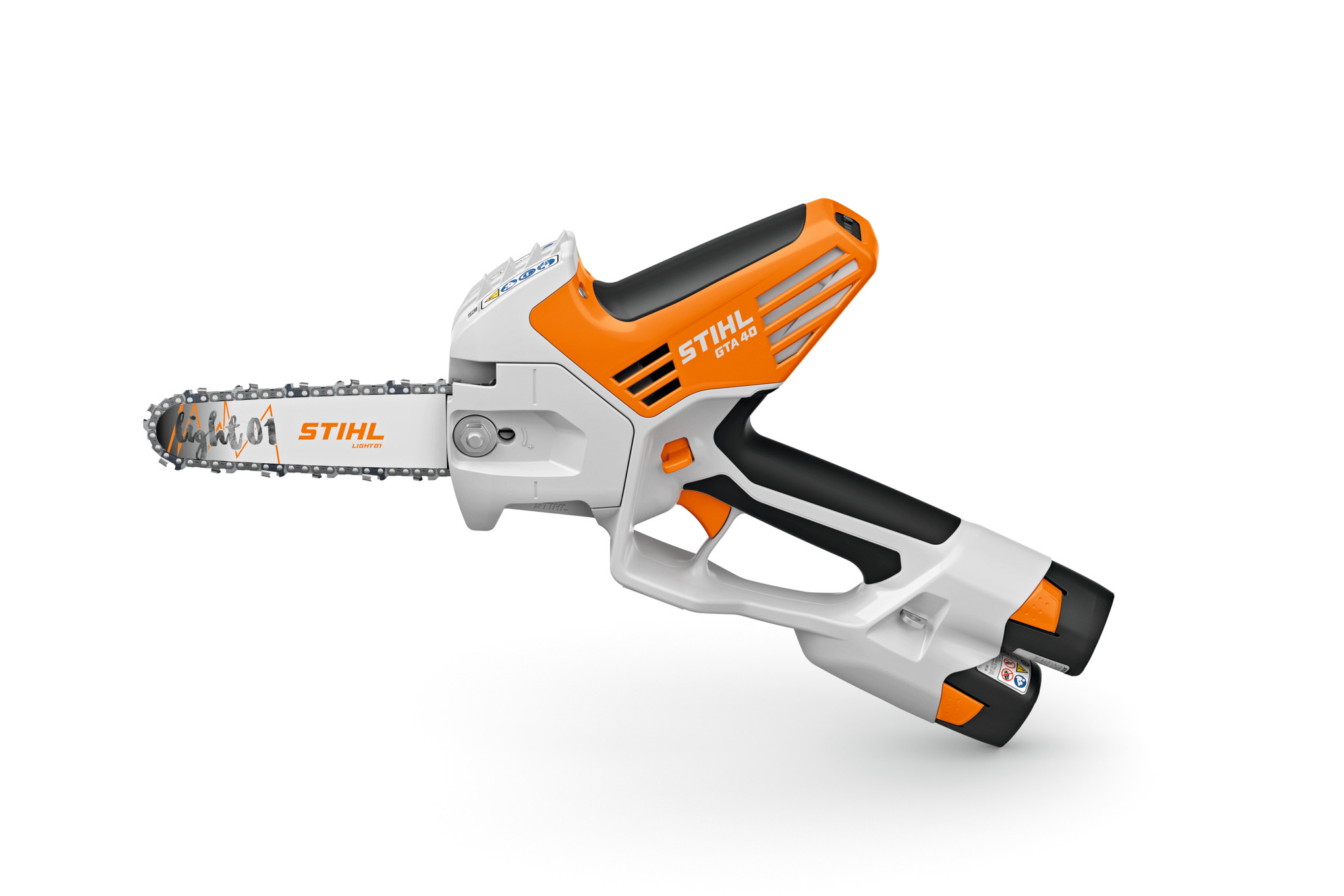

STIHL GTA 40 (When sawing branches (4 cm Ø) up to ...)	50 min⁴	-	-	-	-

Grass Trimmers/Brushcutters/clearing saws

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL FSA 30 (with PolyCut 3-2)	19 min⁴	-	-	-	-
STIHL FSA 45 (with PolyCut 2-2 blades/line)	-	20 min³	-	-	-
STIHL FSA 57 (with nylon mowing head)	-	-	25 min³	50 min	60 min
STIHL FSA 60 R (with nylon mowing head)	-	-	13 min	30 min³	38 min
STIHL FSA 80 R (with nylon mowing head)	-	-	12 min	25 min	30 min
STIHL FSA 80 (with grass cutting blade)	-	-	12 min	25 min	30 min

STIHL AP-System

Battery life per battery charge¹ ⁷:

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL FSA 86 R (with nylon mowing head/with PolyCut)	30 - 17 min	70 - 35 min³	80 - 40 min	110 - 55 min	130 - 65 min
STIHL FSA 90 R (with nylon mowing head)	12 min	24 min	30 min³	37 min	44 min
STIHL FSA 120 (with grass cutting blade)	30 - 20 min⁵	60 - 40 min⁵	80 - 50 min⁵	110 - 60 min⁵	130 - 70 min⁵
STIHL FSA 120 R (with nylon mowing head)	15 - 10 min⁵	30 - 20 min⁵	40 - 25 min⁵	50 - 30 min⁵	60 - 35 min⁵
STIHL FSA 130 R (with nylon mowing head)	14 - 10 min⁴	28 - 17 min⁴	36 - 19 min⁴	45 - 25 min⁴	54 - 30 min⁴
STIHL FSA 135 R (with nylon mowing head)	-	28 - 17 min⁶	36 - 19 min⁶	45 - 25 min⁶	54 - 30 min⁶
STIHL FSA 400 K (with circular saw blade)	-	-	-	40 - 20 min⁶	50 - 25 min⁶
STIHL FSA 130 (with grass cutting blade)	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min⁴	120 - 60 min⁴
STIHL FSA 135 (with grass cutting blade)	-	50 - 30 min⁶	50 - 30 min⁶	100 - 50 min⁶	120 - 60 min⁶
STIHL FSA 200/ FSA 200 R (with grass cutting blade)	-	32 - 16 min⁶	38 - 19 min⁶	60 - 30 min⁶	70 - 35 min⁶
STIHL FSA 200/FSA 200 R (with nylon mowing head)	-	20 - 10 min⁶	24 - 12 min⁶	32 - 16 min⁶	40 - 20 min⁶
STIHL RGA 140	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min⁴	120 - 60 min⁴

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³Recommended cutting attachment

⁴ Level 1 to Level 3/4

⁵ Level 1 to Level 2

⁶Level 1 to Level 3

⁷ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Chainsaws

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL MSA 120 C-B	-	-	18 min⁴	40 min³	55 min
STIHL MSA 140 C-B	-	-	18 min⁴	40 min⁴	45 min³
STIHL MSA 60 C-B	-	-	18 min	40 min	55 min
STIHL MSA 70 C-B	-	-	18 min	40 min	45 min
STIHL MSA 80 C-B	-	-	-	-	35 min

STIHL AP-System

Battery life per battery charge¹ ⁵

	AP 100 (94 Wh battery power²)	AP 200 / AP 200 S (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL MSA 160 C-B	-	42 min³	50 min	62 min	74 min
STIHL MSA 200 C-B	-	42 min⁴	40 min³	50 min	60 min
STIHL MSA 161 T	-	42 min³	50 min³	62 min	74 min
STIHL MSA 220 C-B	-	32 min⁴	35 min⁴	37 min³	44 min
STIHL MSA 220 T	-	16 min⁴	25 min⁴	29 min³	34 min
STIHL MSA 300	-	-	-	-	44 - 20 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

²Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³Recommended cutting attachment

⁴Reduced tool performance

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

leaf blowers/blowers/vacuum shredders

STIHL AS-System, AI-Line and AK-System

Battery life per battery charge (up to ... min)¹:

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL BGA 30	25 - 8 min	-	-	-	-
STIHL BGA 45	-	10 min	-	-	-
STIHL BGA 50	-	-	55 - 10 min⁴	115 - 20 min^{3 4}	140 - 25 min⁴
STIHL BGA 56	-	-	10 min	20 min	25 min
STIHL BGA 57	-	-	10 min	22 min³	27 min
STIHL BGA 60	-	-	50 - 9 min⁴	105 - 13 min⁴	130 - 16 min^{3 4}
STIHL SHA 56	-	-	12 min	25 min³	30 min

STIHL AP-System

Battery life per battery charge¹ ⁷

	AP 100 (94 Wh battery power²)	AP 200 / AP 200 S (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL BGA 86	35 - 11 min⁵	105 - 18 min⁵	120 - 21 min^{3 5}	150 - 26 min⁵	175 - 31 min⁵
STIHL BGA 100	32 - 8 min⁴	66 - 12 min⁴	83 - 16 min⁴	103 - 20 min⁴	123 - 24 min⁴
STIHL BGA 160	30 - 60 min⁵	75 - 10 min⁵	90 - 11 min⁵	110 - 15 min⁵	130 - 17 min⁵
STIHL BGA 200	24 - 6 min⁴	49 - 7 min⁴	78 - 12 min⁴	95 - 14 min⁴	114 - 17 min⁴
STIHL BGA 250	-	27 - 13 min⁴	32 - 10 min⁴	40 - 12 min³ ⁴	48 - 14 min⁴
STIHL BGA 300	-	16 - 13 min⁴	25 - 10 min⁴	29 - 12 min⁴	97 - 48 min⁴
STIHL SHA 140	20 - 12 min⁶	39 - 25 min⁶	48 - 31 min⁶	60 - 38 min^{3 6}	71 - 44 min⁶

	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1.148 Wh battery power²)	AR 2000 L (1.015 Wh battery power²)	AR 2000 L (1.080 Wh battery power²)	AR 3000 L (1.520 Wh battery power²)	AR 3000 L (1.620 Wh battery power²)
STIHL BGA 86	-	-	-	565 - 90 min⁵	580 - 95 min⁵	840 - 140 min⁵	910 - 148 min⁵
STIHL BGA 100	225 - 45 min⁴	300 - 60 min⁴	395 - 75 min^{3 4}	375 - 75 min⁴	400 - 80 min⁴	555 - 105 min^{3 4}	595 - 110 min⁴
STIHL BGA 160	-	-	-	415 -53 min⁵	430 - 56 min⁵	625 - 80 min⁵	670–85 min⁵
STIHL BGA 200	-	-	-	315 - 53 min⁴	335 - 55 min⁴	500 - 85 min^{3 4}	535 - 90 min⁴
STIHL BGA 250	-	-	-	315 - 53 min⁴	335 - 55 min⁴	500 - 85 min^{3 4}	535 - 90 min⁴
STIHL BGA 300	-	-	-	97 - 48 min⁴	105 - 50 min⁴	140 - 61 min^{3 4}	150 - 65 min⁴
STIHL SHA 140	-	-	-	-	-	-	-

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended cutting attachment

⁴ Level 1 - Level 3/Boost

⁵ Continuous adjustment of power minimum - maximum

⁶Boost / normal

⁷ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Lawn mowers

STIHL AK-System

Maximum battery ranges¹

	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL RMA 460	103 m²	206 m²	268 m²
STIHL RMA 460 V	121 m²	242 m²	314 m²
STIHL RMA 348	105 m²	210 m²	275 m²
STIHL RMA 348 V	125 m²	250 m²	325 m²
STIHL RMA 448 V	130 m²	260 m²	340 m²

STIHL AP-System

Maximum battery ranges¹ ⁵

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL RMA 510	-	234 m²	-	352 m²	422 m²
STIHL RMA 510 V	-	277 m^2-	-	416 m²	499 m²
STIHL RMA 353	-	250 m²	-	370 m²	445 m²
STIHL RMA 353 V	-	290 m²	-	435 m²	520 m²
STIHL RMA 453 V	-	300 m²	-	450 m²	540 m²
STIHL RMA 765 V	-	-	-	400 m²	480 m²

	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1.148 Wh battery power²)	AR 2000 L (1.015 Wh battery power²)	AR 2000 L (1.080 Wh battery powere²)	AR 3000 L (1.520 Wh battery power²)	AR 3000 L (1.620 Wh battery power²)
STIHL RMA 765 V	-	-	-	2.050 m²	2.100 m²	3.100 m^{2 3}	3.130 m²

_{¹ The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³Recommended cutting attachment

⁴Reduced tool performance

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Pole pruner

STIHL AP-System

Battery life per battery charge¹ ⁵:

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL HTA 86	18 min⁴	42 min³	55 min	68 min	82 min
STIHL HTA 135	18min	36 min	43 min	54 min³	70 min
STIHL HTA 150 (forestry/care variant)	19 min	30 min	47 min	60 min	68 min
STIHL HTA 160	18 min	36 min	56 min	70 min	80 min

	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1.148 Wh battery power²)	AR 2000 L (1.015 Wh battery power²)	AR 2000 L (1.080 Wh battery power²)	AR 3000 L (1.520 Wh battery power²)	AR 3000 L (1.620 Wh battery power²)
STIHL HTA 86	-	-	-	210 min	222 min	300 min	318 min
STIHL HTA 135	-	-	-	254 min	262 min	277 min	285 min
STIHL HTA 150 (forestry/care variant)	-	-	-	222 min	235 min	243 min	252 min
STIHL HTA 160	-	-	-	262 min	277 min	393 min	416 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended cutting attachment

⁴ Reduced tool performance

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

	AK 10 (94 Wh battery power²)	AK 20 (187 Wh battery power²)	AK 30 S (227 Wh battery power²)
STIHL HTA 50	25 min¹	45 min¹	60 min¹

KombiSystem and MultiSystem

STIHL AK-System

Battery life per battery charge¹

	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL KMA 80 R (FS-KM mowing head)	10 - 5 min⁴	20 - 10 min⁴	25 - 15 min⁴
STIHL KMA 80 R (FS-KM grass-cutting blade)	20 - 10 min⁴	40 - 20 min⁴	50 - 30 min⁴
STIHL KMA 80 R (HL-KM 0° long-reach hedge trimmer)	50 - 35 min⁴	100 - 70 min⁴	130 - 90 min⁴
STIHL KMA 80 R (HL-KM 145° long-reach hedge trimmer)	50 - 35 min⁴	100 - 70 min⁴	130 - 90 min⁴
STIHL KMA 80 R (FH-KM 145° scrub cutter)	50 - 35 min⁴	100 - 70 min⁴	130 - 90 min⁴
STIHL KMA 80 R (BG-KM blower)	10 - 5 min⁴	20 - 10 min⁴	25 - 15 min⁴
STIHL KMA 80 R (HT-KM pole pruner)	20 - 10 min⁴	40 - 20 min⁴	50 - 25 min⁴
STIHL KMA 80 R (KW-KM power sweep)	15 - 10 min⁴	30 - 25 min⁴	35 - 30 min⁴
STIHL KMA 80 R (KB-KM bristle brush)	15 - 10 min⁴	30 - 25 min⁴	35 - 30 min⁴
STIHL KMA 80 R (BF-KM pick tine)	15 - 10 min⁴	30 - 25 min⁴	35 - 30 min⁴
STIHL KMA 80 R (FCB-KM edge trimmer)	12 - 8 min⁴	25 - 15 min⁴	30 - 20 min⁴
STIHL KMA 80 R (FCS-KM edge trimmer)	12 - 8 min4	25 - 15 min4	30 - 20 min⁴
STIHL KMA 80 R (FBD-KM bed edge trimmer)	5 min⁴	10 min⁴	12 min⁴
STIHL KMA 80 R (SP-KM harvester)	20 - 12 min⁴	45 - 25 min⁴	55 - 35 min⁴
STIHL KMA 80 R (RG-KM rotary cutting head)	12 - 10 min⁴	23 - 21 min⁴	29 - 26 min⁴

STIHL AP-System

Battery life per battery charge¹ ⁷

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL KMA 120 R (FS-KM mowing head)	-	25 -15 min⁵	35 -20 min⁵	45 - 25 min⁵	55 - 30 min⁵
STIHL KMA 130 R (FS-KM mowing head)	14 - 7 min⁴	28 - 14 min⁴	36 - 17 min⁴	45- 22 min	54 - 26 min⁴
STIHL KMA 135 R (FS-KM mowing head)	-	28 - 14 min⁴	33 - 17 min⁴	45- 22 min^{3 4}	54 - 26 min⁴
STIHL KMA 200 R (FSS-KM mowing head)	-	20 - 10 min⁴	24 - 12 min⁴	30 - 15 min⁴	36 - 18 min⁴
STIHL KMA 120 R (FS-KM grass-cutting blade)	-	60 - 35 min⁵	80 - 45 min⁵	100 - 55 min⁵	120 - 60 min⁵
STIHL KMA 130 R (FS-KM grass-cutting blade)	25 - 16 min⁴	50 - 30 min⁴	70 - 40 min⁴	100 - 50 min^{3 4}	120 - 60 min⁴
STIHL KMA 135 R (FS-KM grass-cutting blade)	-	50 - 30 min⁴	60–36 min⁴	100 - 50 min^{3 4}	120 - 60 min⁴
STIHL KMA 200 R (FS-KM grass-cutting blade)	-	32 - 16 min⁴	38 - 19 min⁴	47 - 23 min⁴	56 - 28 min⁴
STIHL KMA 120 R (HL-KM 0° long-reach hedge trimmer)	70 - 45 min⁴	130 - 90 min⁴	190 - 130 min⁴	240 - 160 min⁴	290 - 190 min⁴
STIHL KMA 130 R (HL-KM 0° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 135 R (HL-KM 0° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 200 R (HL-KM 0° long-reach hedge trimmer)	-	31 - 55 min	38 - 67 min	48 - 84 min	57 - 99 min
STIHL KMA 120 R (HL-KM 145° long-reach hedge trimmer)	70 - 45 min⁴	130 - 90 min⁴	190 - 130 min⁴	240 - 160 min⁴	290 - 190 min⁴
STIHL KMA 130 R (HL-KM 145° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 135 R (HL-KM 145° long-reach hedge trimmer)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 200 R (HL-KM 145° long-reach hedge trimmer)	-	55 - 31 min	67 - 38 min	84 - 48 min	99 - 57 min
STIHL KMA 120 R (FH-KM 145° scrub cutter)	70 - 45 min⁴	130 - 90 min⁴	190 - 130 min⁴	240 - 160 min⁴	290 - 190 min⁴
STIHL KMA 130 R (FH-KM 145° scrub cutter)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 135 R (FH-KM 145° scrub cutter)	62 - 41 min⁴	123 - 81 min⁴	185 - 123 min⁴	229 - 152 min⁴	275 - 182 min⁴
STIHL KMA 200 R (FH-KM 145° scrub cutter)	-	55 - 37 min	67 - 45 min	84 - 56 min	99 - 66 min
STIHL KMA 120 R (BG-KM blower)	15 - 10 min⁴	25 - 15 min⁴	40 - 20 min⁴	50 - 25 min⁴	55 - 30 min⁴
STIHL KMA 130 R (BG-KM blower)	14 - 6 min⁴	26 - 10 min⁴	39 - 15 min⁴	48 - 19 min⁴	58 - 23 min⁴
STIHL KMA 135 R (BG-KM blower)	14 - 6 min⁴	26 - 10 min⁴	39 - 15 min⁴	48 - 19 min⁴	58 - 23 min⁴
STIHL KMA 200 R (BG-KM blower)	-	24 - 7 min	29 - 8 min	37 - 11 min	44 - 14 min
STIHL KMA 120 R (HT-KM pole pruner)	25 - 15 min⁴	50 - 25 min⁴	70 - 35 min⁴	85 - 40 min⁴	100 - 45 min⁴
STIHL KMA 130 R (HT-KM pole pruner)	22 - 10 min⁴	42 - 19 min⁴	63 - 29 min⁴	78 - 36 min⁴	94 - 43 min⁴
STIHL KMA 135 R (HT-KM pole pruner)	22 - 10 min⁴	42 - 19 min⁴	63 - 29 min⁴	78 - 36 min⁴	97 - 43 min⁴
STIHL KMA 200 R (HT-KM pole pruner)	-	24 - 7 min	29 - 9 min	37 - 12 min	44 - 14 min
STIHL KMA 120 R (KW-KM power sweep)	20 - 15 min⁴	35 - 30 min⁴	50 - 40 min⁴⁶	60 - 50 min⁴	70 - 60 min⁴
STIHL KMA 130 R (KW-KM power sweep)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 135 R (KW-KM power sweep)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 200 R (KW-KM power sweep)	-	27 - 19 min	33 - 24 min	42 - 30 min	50 - 35 min
STIHL KMA 120 R (KB-KM bristle brush)	20 - 15 min⁴	35 - 30 min⁴	50 - 40 min⁴	60 - 50 min⁴	70 - 60 min⁴
STIHL KMA 130 R (KB-KM bristle brush)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 135 R (KB-KM bristle brush)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 200 R (KB-KM bristle brush)	-	27 - 19 min	33 - 24 min	42 - 30 min	50 - 35 min
STIHL KMA 120 R (BF-KM pick tine)	20 - 15 min⁴	35 - 30 min⁴	50 - 40 min⁴	60 - 50 min⁴	70 - 60 min⁴
STIHL KMA 130 R (BF-KM pick tine)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 135 R (BF-KM pick tine)	16 - 13 min⁴	31 - 25 min⁴	46 - 37 min⁴	57 - 46 min⁴	68 - 55 min⁴
STIHL KMA 200 R (BF-KM pick tine)	-	37 - 24 min	45 - 29 min	56 - 37 min	66 - 44 min
STIHL KMA 120 R (FCB-KM edge trimmer)	15 - 10 min⁴	30 - 20 min⁴	35 - 25 min⁴	45 - 30 min⁴	55 - 35 min⁴
STIHL KMA 130 R (FCB-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴
STIHL KMA 135 R (FCB-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴
STIHL KMA 200 R (FCB-KM edge trimmer)	-	22 - 11 min	27 - 13 min	34 - 17 min	40 - 20 min
STIHL KMA 120 R (FCS-KM edge trimmer)	15 - 10 min⁴	30 - 20 min⁴	35 - 25 min⁴	45 - 30 min⁴	55 - 35 min⁴
STIHL KMA 130 R (FCS-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴
STIHL KMA 135 R (FCS-KM edge trimmer)	12 - 7 min⁴	23 - 12 min⁴	33 - 18 min⁴	41 - 22 min⁴	49 - 26 min⁴
STIHL KMA 200 R (FCS-KM edge trimmer)	-	22 - 11 min	27 - 13 min	34 - 17 min	40 - 20 min
STIHL KMA 120 R (FBD-KM bed edge trimmer)	8 min⁴	12 min⁴	16 min⁴	20 min⁴	25 min⁴
STIHL KMA 130 R (FBD-KM bed edge trimmer)	5 - 5 min⁴	9 - 9 min⁴	14 - 14 min⁴	-	-
STIHL KMA 135 R (FBD-KM bed edge trimmer)	5 - 5 min⁴	9 - 9 min⁴	14 - 14 min⁴	-	-
STIHL KMA 200 R (FBD-KM bed edge trimmer)	-	9 min	11 min	14 min	17 min
STIHL KMA 120 R (SP-KM harvester)	30 - 20 min⁴	55 - 35 min⁴	85 - 55 min⁴	100 - 65 min⁴	120 - 80 min⁴
STIHL KMA 130 R (SP-KM harvester)	26 - 17 min⁴	51 - 33 min⁴	78 - 50 min⁴	97 - 62 min⁴	116 - 74 min⁴
STIHL KMA 135 R (SP-KM harvester)	26 - 17 min⁴	51 - 33 min⁴	78 - 50 min⁴	97 - 62 min⁴	116 - 74 min⁴
STIHL KMA 120 R (RG-KM rotary cutting head)	14 - 12 min⁴	29 - 26 min⁴	36 - 32 min⁴	45 min⁴	54 min⁴
STIHL KMA 130 R (RG-KM rotary cutting head set to level 3)	28 min	57 min	70 min	85 min	102 min
STIHL KMA 135 R (RG-KM rotary cutting head set to level 3)	28 min	57 min	70 min	85 min	102 min
STIHL KMA 200 R (RG-KM rotary cutting head)	-	37 - 27 min	45 - 33 min	56 - 42 min	66 - 50 min

	AR 1000 (626 Wh battery power²)	AR 2000 (916 Wh battery power²)	AR 3000 (1.148 Wh battery power²)	AR 2000 L (1.015 Wh battery power²)	AR 2000 L (1.080 Wh battery power²)	AR 3000 L (1.520 Wh battery power²)	AR 3000 L (1.620 Wh battery power²)
STIHL KMA 120 R (FS-KM mowing head)	110 - 55 min⁴	160 - 80 min⁴	200 - 100 min⁴	180–100 min⁵	190–110 min⁵	270 - 160 min⁵	290–170 min⁵
STIHL KMA 130 R (FS-KM mowing head)	100 - 50 min^{3 4}	150 - 70 min⁴	193 - 92 min⁴	160- 80 min^{3 4}	-	200 - 115 min⁴	-
STIHL KMA 135 R (FS-KM mowing head)	100 - 50 min^{3 4}	150 - 70 min⁴	193 - 92 min⁴	160- 80 min⁴	170 -85 min⁶	200 - 115 min⁴	213–122 min⁶
STIHL KMA 200 R (FSS-KM mowing head)	108 - 54 min⁴	-	-	-	115 - 57 min⁴	162 - 81 min⁴	172 - 86 min⁴
STIHL KMA 120 R (FS-KM grass-cutting blade)	220 - 110 min⁴	320 - 160 min⁴	200 - 100 min⁴	360 - 180 min⁵	380–190 min⁵	490–260 min⁵	520–270 min⁵
STIHL KMA 130 R (FS-KM grass-cutting blade)	200 - 100 min^{3 4}	300 - 150 min⁴	368 - 19 1min⁴	310 - 160 min^{3 4}	325–170 min⁶	430 - 240 min⁴	450–250 min⁶
STIHL KMA 135 R (FS-KM grass-cutting blade)	200 - 100 min^{3 4}	300 - 150 min⁴	368 - 191 min⁴	310 - 160 min⁴	-	430 - 240 min⁴	-
STIHL KMA 200 R (FS-KM grass-cutting blade)	-	-	-	168 - 84 min⁴	178 - 89 min⁴	252 - 126 min⁴	268 - 134 min⁴
STIHL KMA 120 R (HL-KM 0° long-reach hedge trimmer)	540 - 350 min⁴	780 - 510 min⁴	980 - 640 min⁴	860 - 560 min⁴	-	1290 - 840 min⁴	-
STIHL KMA 130 R (HL-KM 0° long-reach hedge trimmer)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 135 R (HL-KM 0° long-reach hedge trimmer)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 200 R (HL-KM 0° long-reach hedge trimmer)	-	-	-	170 - 300 min	-	250 - 440 min	-
STIHL KMA 120 R (HL-KM 145° long-reach hedge trimmer)	540 - 350 min⁴	780 - 510 min⁴	980 - 640 min⁴	860 - 560 min⁴	-	1290 - 840 min⁴	-
STIHL KMA 130 R (HL-KM 145° long-reach hedge trimmer)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 135 R (HL-KM 145° long-reach hedge trimmer)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 200 R (HL-KM 145° long-reach hedge trimmer)	-	-	-	300 - 170 min	-	440 - 250 min	-
STIHL KMA 120 R (FH-KM 145° scrub cutter)	540 - 350 min⁴	780 - 510 min⁴	980 - 640 min⁴	860 - 560 min⁴	-	1290 - 840 min⁴	-
STIHL KMA 130 R (FH-KM 145° scrub cutter)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 135 R (FH-KM 145° scrub cutter)	501 - 332 min^{3 4}	733 - 486 min⁴	918 - 610 min⁴	810 - 540 min^{3 4}	-	1150 - 790 min⁴	-
STIHL KMA 200 R (FH-KM 145° scrub cutter)	-	-	-	200 - 300 min	-	280 - 400 min	-
STIHL KMA 120 R (BG-KM blower)	105 - 45 min⁴	155 - 75 min⁴	195 - 85 min⁴	175 - 75 min⁴	-	260 - 110 min⁴	-
STIHL KMA 130 R (BG-KM blower)	104 - 39 min^{3 4}	153 - 57 min⁴	191 - 72 min⁴	170 - 60 min^{3 4}	-	245 - 90 min⁴	-
STIHL KMA 135 R (BG-KM blower)	104 - 39 min^{3 4}	153 - 57 min⁴	191 - 72 min⁴	170 - 60 min^{3 4}	-	245 - 90 min⁴	-
STIHL KMA 200 R (BG-KM blower)	-	-	-	75 - 40 min	-	190 - 60 min	-
STIHL KMA 120 R (HT-KM pole pruner)	190 - 80 min⁴	280 - 120 min⁴	350 - 150 min⁴	300 - 130 min⁴	-	450 - 200 min⁴	-
STIHL KMA 130 R (HT-KM pole pruner)	171 - 77 min^{3 4}	250 - 112 min⁴	313 - 141 min⁴	275 - 120 min^{3 4}	-	320 - 180 min⁴	-
STIHL KMA 135 R (HT-KM pole pruner)	171 - 77 min^{3 4}	250 - 112 min⁴	313 - 141 min⁴	275 - 120 min^{3 4}	-	320 - 180 min⁴	-
STIHL KMA 200 R (HT-KM pole pruner)	-	-	-	130 - 40 min	-	190 - 60 min	-
STIHL KMA 120 R (KW-KM power sweep)	130 - 110 min⁴	190 - 160 min⁴	240 - 200 min⁴	210 - 180 min⁴	-	320 - 270 min⁴	-
STIHL KMA 130 R (KW-KM power sweep)	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 135 R (KW-KM power sweep)	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 200 R (KW-KM power sweep)	-	-	-	150 - 100 min	-	220 - 150 min	-
STIHL KMA 120 R (KB-KM bristle brush)	130 - 110 min⁴	190 - 160 min⁴	240 - 200 min⁴	210 - 180 min⁴	-	320 - 270 min⁴	-
STIHL KMA 130 R (KB-KM bristle brush)	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 135 R (KB-KM bristle brush)	125 - 99 min^{3 4}	183 - 145 min²	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 200 R (KB-KM bristle brush)	-	-	-	150 - 100 min	-	220 - 150 min	-
STIHL KMA 120 R (BF-KM pick tine)	130 - 110 min⁴	190 - 160 min⁴	240 - 200 min⁴	210 - 180 min⁴	-	320 - 270 min⁴	-
STIHL KMA 130 R (BF-KM pick tine)	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 135 R (BF-KM pick tine)	125 - 99 min^{3 4}	183 - 145 min⁴	230 - 181 min⁴	200 - 160 min^{3 4}	-	300 - 230 min⁴	-
STIHL KMA 200 R (BF-KM pick tine)	-	-	-	200 - 130 min	-	290 - 190 min	-
STIHL KMA 120 R (FCB-KM edge trimmer)	100 - 60 min⁴	150 - 90 min⁴	190 - 110 min⁴	170 - 100 min⁴	-	250 - 150 min⁴	-
STIHL KMA 130 R (FCB-KM edge trimmer)	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	-	210 - 110 min⁴	-
STIHL KMA 135 R (FCB-KM edge trimmer)	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	-	210 - 110 min⁴	-
STIHL KMA 200 R (FCB-KM edge trimmer)	-	-	-	120 - 60 min	-	180 - 90 min	-
STIHL KMA 120 R (FCS-KM edge trimmer)	100 - 60 min⁴	150 - 90 min⁴	190 - 110 min⁴	170 - 100 min⁴	-	250 - 150 min⁴	-
STIHL KMA 130 R (FCS-KM edge trimmer)	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	-	210 - 110 min⁴	-
STIHL KMA 135 R (FCS-KM edge trimmer)	89 - 47 min^{3 4}	131 - 69 min⁴	164 - 86 min⁴	145 - 75 min^{3 4}	-	210 - 110 min⁴	-
STIHL KMA 200 R (FCS-KM edge trimmer)	-	-	-	120 - 60 min	-	180 - 90 min	-
STIHL KMA 120 R (FBD-KM bed edge trimmer)	45 min⁴	65 min⁴	80 min⁴	70 min⁴	-	105 min⁴	-
STIHL KMA 130 R (FBD-KM bed edge trimmer)	38 - 38 min^{3 4}	55 - 55 min⁴	69 - 69 min⁴	60 - 60 min^{3 4}	-	90 - 90 min⁴	-
STIHL KMA 135 R (FBD-KM bed edge trimmer)	38 - 38 min^{3 4}	55 - 55 min⁴	69 - 69 min⁴	60 - 60 min^{3 4}	-	90 - 90 min⁴	-
STIHL KMA 200 R (FBD-KM bed edge trimmer)	-	-	-	50 min	-	75 - 70 min	-
STIHL KMA 120 R (SP-KM harvester)	220 - 150 min⁴	320 - 220 min⁴	400 - 280 min⁴	350 - 240 min⁴	-	520 - 360 min⁴	-
STIHL KMA 130 R (SP-KM harvester)	209 - 134 min^{3 4}	305 - 196 min⁴	383 - 246 min⁴	330 - 215 min^{3 4}	-	490 - 320 min⁴	-
STIHL KMA 135 R (SP-KM harvester)	209 - 134 min^{3 4}	305 - 196 min⁴	383 - 246 min⁴	330 - 215 min^{3 4}	-	490 - 320 min⁴	-
STIHL KMA 120 R (RG-KM rotary cutting head)	-	-	-	-	-	-	-
STIHL KMA 130 R (RG-KM rotary cutting head set to level 3)	190min³	280 min	350 min	300 min³	-	450 min	-
STIHL KMA 135 R (RG-KM rotary cutting head set to level 3)	190 min³	280 min	350 min	300 min³	-	450 min	-
STIHL KMA 200 R (RG-KM rotary cutting head)	-	-	-	200 - 150 min	-	290 - 210 min	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³Recommended cutting attachment

⁴Level 1 to Level 3/4

⁵ Level 1 to Level 2

⁶ Level 1 to Level 3

⁷ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

SweepERS

STIHL AP System

Maximum battery life per battery charge¹ ⁴

	AP 100 (94 Wh battery power²)	AP 200 / AP 200 S (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL KGA 770	84 min³	168 min³	210 min	260 min	312 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended battery.

⁴ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Cut-off machines

STIHL AP-System

Maximum battery life per battery charge¹ ⁴

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL TSA 230	-	14 - 9 min	-	24 - 15 min	26 min
STIHL TSA 300	-	9 - 5 min	-	16 - 9 min	22 - 12 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended cutting attachment

⁴ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Wet and dry vacuum cleaners

STIHL AS System, AI Line and AK System

Maximum battery life per battery charge¹

	AS 2 (28 Wh battery power²)	Integrated battery	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL SEA 20	14 min³	-	-	-	-
STIHL SEA 60	-	-	12 - 8 min⁴	24 - 16 min^{3 4}	30 - 20 min⁴

STIHL AP System

Battery life per battery charge¹ ⁵:

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL SEA 100	15 min	24 min	45 - 28 min	45 - 28 min	54 - 33 min

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended battery.

⁴ Continuous adjustment of power minimum - maximum

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Sprayers

STIHL AP-System

Maximum battery life per battery charge¹ ⁵

	AP 100 (94 Wh battery power²)	AP 200 (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL SGA 85	510 min⁴	1000 min³	-	-	-

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended cutting attachment

⁴ Reduced tool performance

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

Pressure Washers

STIHL AP System

Maximum battery life per battery charge¹ ⁵

	AP 100 (94 Wh battery power²)	AP 200 / AP 200 S (187 Wh battery power²)	AP 300 (227 Wh battery power²)	AP 300 S (281 Wh battery power²)	AP 500 S (337 Wh battery power²)
STIHL REA 100 PLUS	15 - 10 min⁴	30 - 12min⁴	30 - 12 min⁴	45 - 14 min³ ⁴	50 - 17 min⁴

_{¹The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.

² Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.

³ Recommended battery.

⁴ Continuous adjustment of power minimum - maximum

⁵ Please refer to the operating instructions for your product. These overviews show the current range of batteries and machines in the AP system. If you have any further questions, please contact STIHL or your STIHL dealer.}

STIHL AS System and AK System

Battery life per battery charge¹:

	AS 2 (28 Wh battery power²)	AK 10 (72 Wh battery power²)	AK 20 (144 Wh battery power²)	AK 30 S (180 Wh battery power²)
STIHL RCA 20	15 - 8 min³	-	-	-
STIHL REA 60 PLUS	-	12 - 10 min⁴	20 - 11 min⁴	25 - 12 min^{3 4}

Battery charging times

Battery charging times in minutes

The charging times of batteries are not determined solely by their capacity – the charger also has an impact on battery charging time. For example, the charging time for the STIHL AK 10 battery with the AL 101 charger is 95 minutes, while with the AL 300 charger the battery is fully charged in just 45 minutes. The table below shows which charger suits which STIHL battery and indicates the charging time required to reach a battery level of 80% and 100%.

	AL 1		LK 45		AL 101
	80%	100%	80%	100%	80%	100%
AS 2	60 min	80 min	-	-	-	-
BGA 45	-	-	210 min	300 min	-	-
HSA 45	-	-	145 min	210 min	-	-
FSA 45	-	-	145 min	210 min	-	-
AK 10	-	-	-	-	70 min	95 min
AK 20	-	-	-	-	135 min	180 min
AK 30 S	-	-	-	-	160 min	205 min
AP 100¹	-	-	-	-	75 min	100 min
AP 200	-	-	-	-	150 min	200 min
AP 300	-	-	-	-	190 min	250 min
AP 300 S	-	-	-	-	230 min	300 min
AP 500 S	-	-	-	-	280 min	355 min
AR 1000¹	-	-	-	-	-	-
AR 2000¹	-	-	-	-	-	-
AR 3000¹	-	-	-	-	-	-
AR 2000 L	-	-	-	-	-	-
AR 3000 L	-	-	-	-	-	-

	AL 300		AL 301		AL 301-4		AL 500
	80%	100%	80%	100%	80%	100%	80%	100%
AS 2	-	-	-	-	-	-	-	-
BGA 45	-	-	-	-	-	-	-	-
HSA 45	-	-	-	-	-	-	-	-
FSA 45	-	-	-	-	-	-	-	-
AK 10	30 min	45 min	25 min	40 min	-	-	30 min	45 min
AK 20	35 min	55 min	30 min	50 min	-	-	30 min	45 min
AK 30 S	35 min	60 min	35 min	60 min	-	-	35 min	50 min
AP 100¹	30 min	45 min	30 min	45 min	30 min	45 min	30 min	45 min
AP 200	40 min	55 min	40 min	55 min	40 min	55 min	30 min	45 min
AP 300	45 min	60 min	50 min	75 min	50 min	75 min	25 min	35 min
AP 300 S	55 min	70 min	55 min	80 min	55 min	80 min	30 min	45 min
AP 500 S	70 min	90 min	70 min	90 min	70 min	90 min	40 min	55 min
AR 1000¹	130 min	160 min	-	-	-	-	90 min	120 min
AR 2000¹	190 min	215 min	-	-	-	-	100 min	130 min
AR 3000¹	220 min	265 min	-	-	-	-	120 min	160 min
AR 2000 L	210 min	270 min	220 min	290 min	220 min	290 min	110 min	150 min
AR 3000 L	310 min	400 min	330 min	430 min	330 min	430 min	170 min	220 min

_{^{1 no longer in the current delivery program}}

battery life and charging times

Overview battery systems

Battery life per battery charge

STIHL AS/AI/AK

STIHL AP-System

Hedge trimmers/long-reach hedge trimmers

STIHL AS-System, AI-Line and AK-System

STIHL AP-System

HLA 86

HSA 40 Set

HLA 66

HSA 30 Set

HSA 140 T

HSA 50 Set

HLA 56

Garden pruners/pruning shears

STIHL AS-System, AI-Line and AK-System

GTA 26 Set

GTA 26 (Unit Only)

GTA 40 (Unit Only)

GTA 40 Set

Grass Trimmers/Brushcutters/clearing saws

STIHL AS-System, AI-Line and AK-System

STIHL AP-System

FSA 130 R

FSA 30 Set

FSA 90 R

FSA 45

FSA 120 R

FSA 60 Set

Chainsaws

STIHL AS-System, AI-Line and AK-System

STIHL AP-System

MSA 60 C-BQ (Unit Only)

MSA 70 (Unit Only)

MSA 80 C-B (Unit Only)

MSA 300

MSA 161 T

MSA 220 C-BQ

leaf blowers/blowers/vacuum shredders

STIHL AS-System, AI-Line and AK-System

STIHL AP-System

BGA 45

BGA 50 Set

BGA 86

BGA 100

Lawn mowers

STIHL AK-System

STIHL AP-System

RMA 765 V (Unit Only)

Pole pruner

STIHL AP-System

HTA 50 (Unit Only)

HTA 86

HTA 150

HTA 160

KombiSystem and MultiSystem

STIHL AK-System

STIHL AP-System

KMA 80 R

KMA 120 R

KMA 135 R

KMA 200 R

SweepERS

STIHL AP System

Cut-off machines

STIHL AP-System

TSA 230 (Unit Only)

TSA 300

Wet and dry vacuum cleaners

STIHL AS System, AI Line and AK System

STIHL AP System

Sprayers

STIHL AP-System

SGA 85

Pressure Washers

STIHL AP System

STIHL AS System and AK System

Battery charging times

Battery charging times in minutes
